How LiDAR Weight Affects Drone Performance?

Drones today have become a popular choice for various tasks, including land mapping, video shoots and getting accurate data. Modern technology instruments, such as LiDAR, are used to make this possible. But here is a thing most people miss: even a milligram of increase in weight can affect the performance of a drone.

LiDAR fits in this category only. It is very efficient, but not weightless. To balance these things, it is important to choose a suitable  LiDAR for drones.

This article explores how LiDAR weight impacts drone performance and its effects on performance.

Key Takeaways

• LiDAR weights directly affect the flight time, the distance it can travel, and its efficiency.
• Any kind of extra weight puts more stress on the working motors and other elements of the drone.
• Selecting the right LiDAR helps to manage both the performance and the lifespan.

The Impact of LiDAR Weight on Drone Performance

LiDAR is a component that is popular to boost efficiency, but at the same time, it also impacts it. Explore how LiDAR affects the performance of a drone:

Endurance

For drones with LiDAR, increased sensor weight quickly affects lift requirements, forcing motors to work harder. This higher power intake depletes the battery more rapidly, limiting total flight time and operational range. In long-distance or inspection missions, even a minor addition to the LiDAR weight can give rise to a significant, measurable loss of strength.

Manoeuvrability and Agility

The LiDAR weight also affects the UAV’s maneuverability and agility. Here is how:

• Response Lag: The High weight of the LiDAR on the drone results in greater inertia, which slows velocity, deceleration, and directional changes. This means the UAV will take longer to react, becoming less versatile in the process.
• Wind Resistance: While extra energy can improve support against wind gusts, it also reduces the drone’s ability to make quick directional adjustments, thereby lowering overall performance.
• Control Difficulty: For missions like barrier navigation or orbital filming, excess LiDAR weight hinders precise control.

Payload Capacity

When LiDAR weight rises, the available payload capacity for other tools such as cameras, sensors, or communication chips decreases. This limits mission flexibility, especially in applications that involve multiple boat systems.

Stress on Structure and Power System

As the weight of LiDAR augments, so does the strain on a drone’s physical and electrical systems:

• Structural Load: Excessive LiDAR weight places extra, sustained stress on the drone’s arms, joints, and fuselage. Over time, this stress can affect vibration issues, material fatigue, or even small structural deformations, settling the airframe’s long-term integrity and flight balance.
• Power System Overload: When motors and electronic speed controllers stay under continuous high load, they create more heat and consume power improperly. This constant pull shortens item lifespan and increases the likelihood of overheating or a sudden system failure during flight.


How Benewake Achieves Ultra-Lightweight UAV LiDAR

The design ideology of Benewake LiDAR centers on weight reduction through structural optimization and precision design. Every part is refined to eliminate extra weight while preserving strength, range, and measurement accuracy.

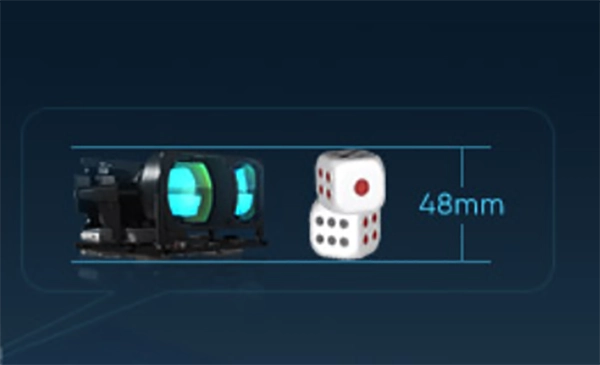

Miniaturization of the Optical System

Benewake completely redesigned the optical system to render the LiDAR sensor more narrow and efficient. The new design features a shorter optical path and smaller internal parts, resulting in the unit being one-third smaller and 64 percent lighter than the previous variation.

Despite the size reduction (with dimensions equivalent to a matchbox), these lightweight sensors maintain the same level of clarity and performance.

Material Innovation and EMC Balance

While most LiDAR manufacturers rely on metal housings for electromagnetic shielding, this choice may raise the load on the aircraft, adversely influencing user experience. Moreover, Benewake conversed with nearly a hundred suppliers and identified a low-weight material solution that also meets EMC certification standards.

To validate the material’s suitability, applied molds were created and nearly 300 hours of testing were conducted, ultimately fully rewarding all performance specifications.

High Integration and Low Power Consumption Design

Realizing a lightweight LiDAR joints on the efficiency of its internal system engineering. Benewake accomplishes this through advanced circuit integration and sophisticated energy management, allowing strong sensor performance with exceptionally low power draw.

• Efficient Circuit Integration: The internal circuitry is highly combined, removing duplicate components and minimizing energy loss. This streamlined arrangement trims both overall weight and power consumption while preserving signal stability and operational accuracy.

• Lightweight Power Supply: Lower power demand lightens the load on batteries and power modules, allowing a more compact and efficient overall energy system for the drone. This directly boosts flight time and enhances mission endurance for extended or detailed operations.
• Passive Cooling System: The minimal heat output obviates the need for traditional active cooling gadgets like fans or large heat sinks. Instead, these compact LiDARs use a slim structural casing for passive cooling, keeping thermal balance within an ultra-lightweight and space-saving form factor.

The Product of Innovation: Benewake TFA300 Series

Benewake TFA300 Series adopts the ultra-lightweight philosophy, offering a new generation of high-frequency LiDAR sensor for high-speed drones operating in varied environments.

Key conditions and features include:

1. Ultra-Lightweight Design: The series sets a new record for size and weight. The TFA300-L small LiDAR weighs a mere 10.5 grams, while the rugged, IP67-rated TFA300 weighs just 34.5 grams. The minimal form factor allows simple insertion into EO/IR gimbals and other UAV payloads without affecting aerodynamics.
2. High-Frequency Performance: Both 2 small LiDAR sensors can operate at up to 10,000 Hz, capturing distance data 10,000 times per second to enable instant trap detection even at near Mach 1 speeds, importantly improving reaction time and flight safety.
3. Versatile Detection Range: With a range of 0.1 to 290 meters, the TFA300 Series is designed for both precise short-range navigation and long-distance applications.
4. Advanced Integration: Compatibility with the DroneCAN protocol ensures quick setup and limits development time.

Conclusion

In the design of a drone, every milligram matters. The equipment that will fly should be of the least weight so that it can cover longer distances. Similarly, the LiDAR that is popular for serving the best performance can affect the flight and add more strain on the whole system.

But at the same time, performance cannot be compromised. To satisfy this, a well-optimised LiDAR system is used in the drone. When this approach is followed, the right balance is created that improves the overall working.

Explore the full specifications of Benewake TFA300 Series to see how it can enhance your UAV platform.
